Perforated Hanger Strap Product Specifications
Ningbo Xinrui Ventilation Equipment Co., Ltd. supplies perforated hanger strap, metal hanger strap and pipe hanger strap for HVAC, plumbing, construction fixing, wholesale distribution and OEM purchasing. In UK / EU buyer language, the same product family may also be described as perforated fixing band or galvanised fixing band.
Website Keyword Positioning
- Primary keyword: perforated hanger strap
- Supporting keywords: metal hanger strap, pipe hanger strap, galvanized hanger strap, perforated metal band
- Regional keyword: perforated fixing band, galvanised fixing band
- Manufacturing terms: punched metal strip, perforated steel strip, custom slit width, hole pattern, finish / surface treatment

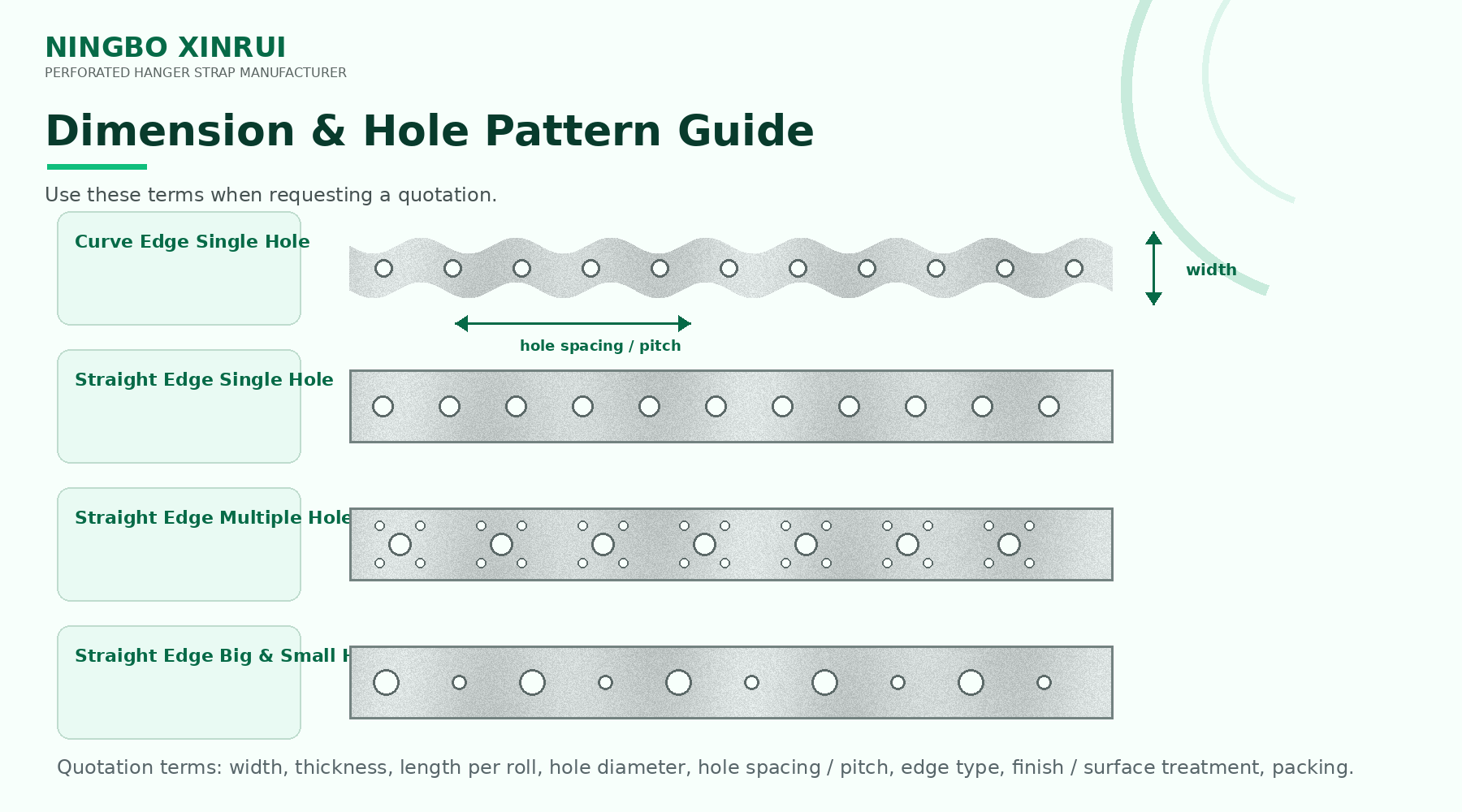

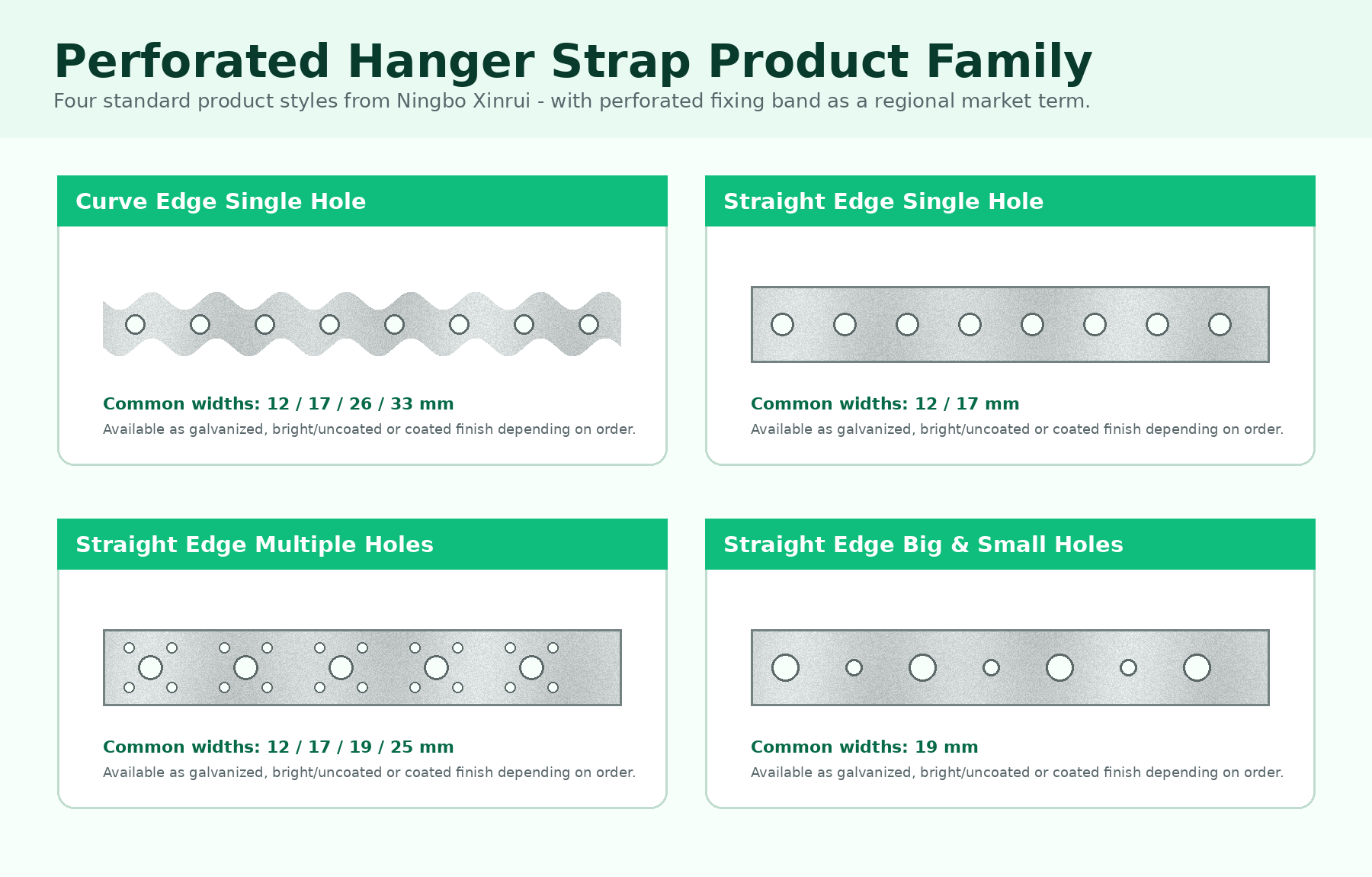

Four Standard Product Styles

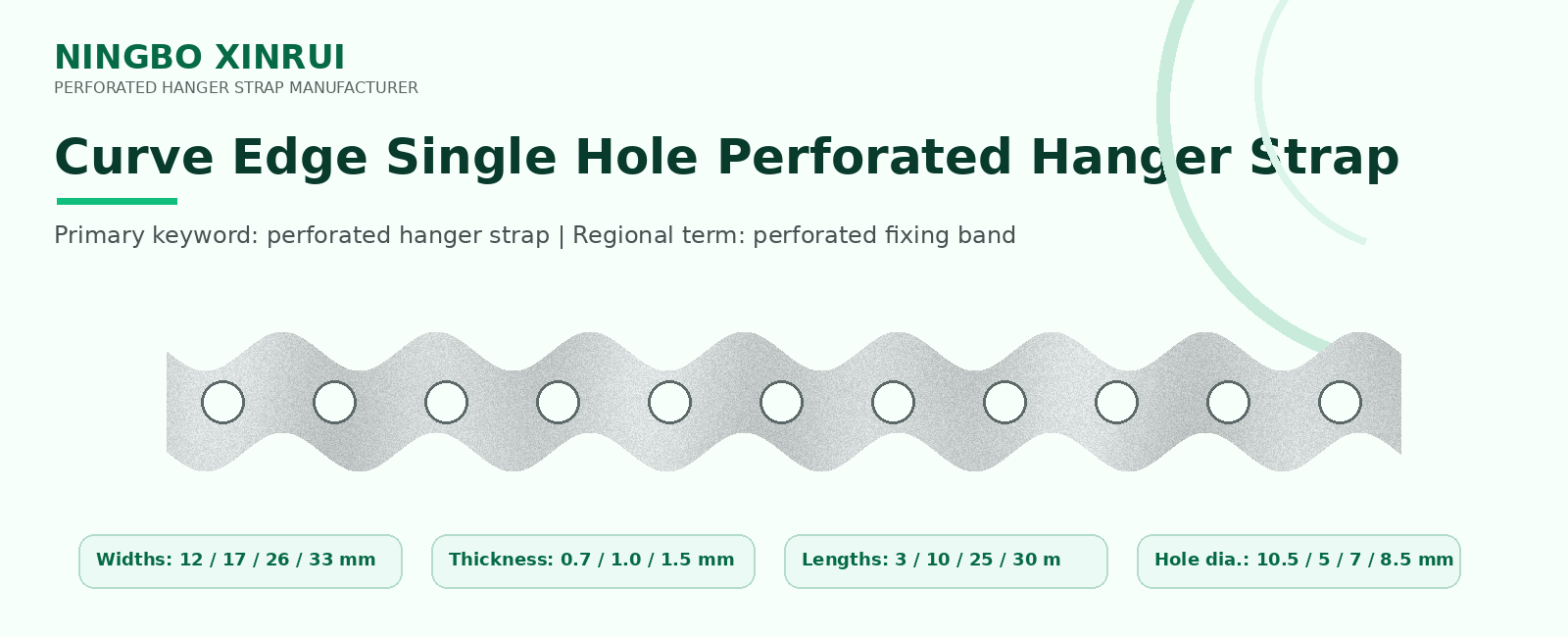

Curve Edge Single Hole Perforated Hanger Strap
Curved edge perforated hanger strap with one repeated central hole line. It is suitable for compact fixing, flexible installation and distributor programs that require the curved-edge style.
- Width options: 12 / 17 / 26 / 33 mm
- Thickness options: 0.7 / 1.0 / 1.5 mm
- Length options: 3 / 10 / 25 / 30 m
| Item No. | Length (m) | Thickness (mm) | Width (mm) | Hole Dia. (mm) | Hole Spacing (mm) | Finish / Surface | Packing |
|---|---|---|---|---|---|---|---|
| QD001 | 3 | 0.7 | 12 | 5 | 15 | Galvanized carbon steel | Plastic cassette unit nested in master carton |
| QD002 | 10 | 0.7 | 12 | 5 | 15 | Bright, uncoated | Same as above |
| QD003 | 10 | 1.0 | 12 | 5 | 15 | Bright, uncoated | Same as above |
| QD004 | 25 | 0.7 | 12 | 5 | 15 | Bright, uncoated | Same as above |
| QD005 | 3 | 0.7 | 12 | 5 | 15 | Powder coated finish | Same as above |
| QD006 | 10 | 0.7 | 12 | 5 | 15 | Powder coated finish | Same as above |
| QD007 | 3 | 0.7 | 17 | 7 | 20 | Bright, uncoated | Same as above |
| QD008 | 10 | 0.7 | 17 | 7 | 20 | Bright, uncoated | Same as above |
| QD009 | 10 | 0.7 | 17 | 7 | 20 | Bright, uncoated | Same as above |
| QD010 | 25 | 0.7 | 17 | 7 | 20 | Bright, uncoated | Same as above |
| QD011 | 3 | 0.7 | 17 | 7 | 20 | Powder coated finish | Unit carton box, master carton |
| QD012 | 10 | 0.7 | 17 | 7 | 20 | Powder coated finish | Same as above |
| QD013 | 10 | 0.7 | 26 | 8.5 | 25 | Bright, uncoated | Same as above |
| QD014 | 30 | 1.5 | 33 | 10.5 | 30 | Confirm on request | Same as above |

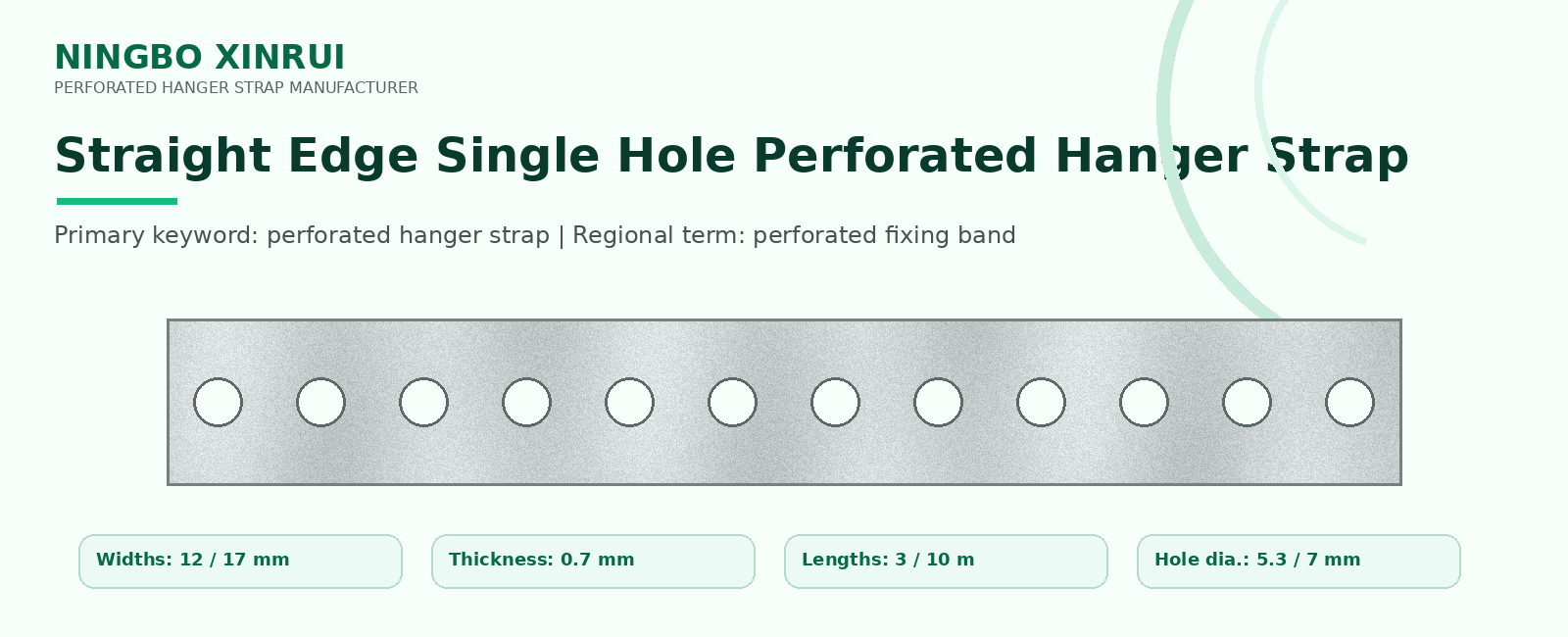

Straight Edge Single Hole Perforated Hanger Strap
Straight edge perforated hanger strap with one repeated central hole line. It is a simple, widely applicable style for general fixing, HVAC support and pipe support.
- Width options: 12 / 17 mm
- Thickness options: 0.7 mm
- Length options: 3 / 10 m
| Item No. | Length (m) | Thickness (mm) | Width (mm) | Hole Dia. (mm) | Hole Spacing (mm) | Finish / Surface | Packing |
|---|---|---|---|---|---|---|---|
| ZD001 | 3 | 0.7 | 12 | 5.3 | 12 | Galvanized carbon steel | Plastic cassette unit nested in master carton |
| ZD002 | 10 | 0.7 | 12 | 5.3 | 12 | Bright, uncoated | Same as above |
| ZD003 | 3 | 0.7 | 12 | 5.3 | 12 | Powder coated finish | Same as above |
| ZD004 | 10 | 0.7 | 12 | 5.3 | 12 | Powder coated finish | Same as above |
| ZD005 | 3 | 0.7 | 17 | 7 | 12 | Bright, uncoated | Same as above |
| ZD006 | 10 | 0.7 | 17 | 7 | 12 | Bright, uncoated | Same as above |
| ZD007 | 3 | 0.7 | 17 | 7 | 12 | Powder coated finish | Unit carton box, master carton |
| ZD008 | 10 | 0.7 | 17 | 7 | 12 | Powder coated finish | Same as above |

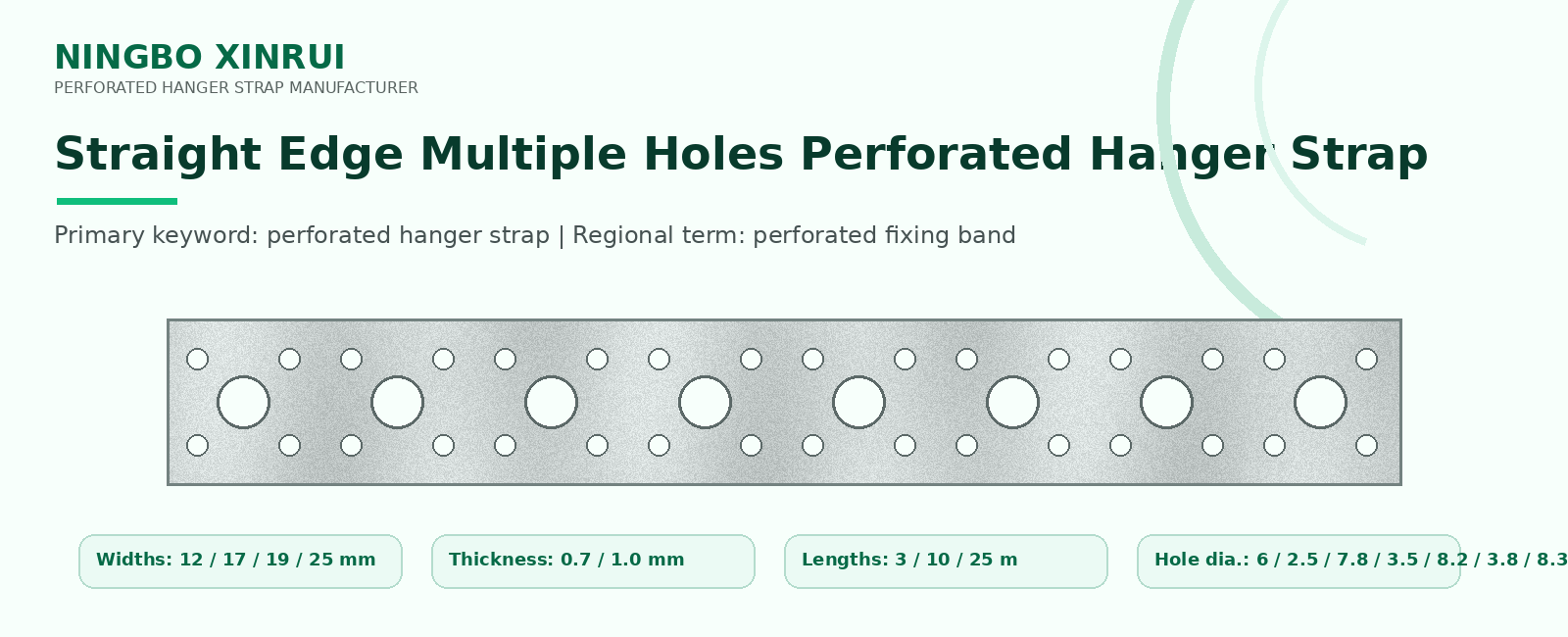

Straight Edge Multiple Holes Perforated Hanger Strap
Straight edge perforated hanger strap with multiple holes in each repeat pattern. It is useful when different screw sizes, fixing positions or installation choices are required.
- Width options: 12 / 17 / 19 / 25 mm
- Thickness options: 0.7 / 1.0 mm
- Length options: 3 / 10 / 25 m
| Item No. | Length (m) | Thickness (mm) | Width (mm) | Hole Dia. (mm) | Hole Spacing (mm) | Finish / Surface | Packing |
|---|---|---|---|---|---|---|---|
| ZM001 | 10 | 0.7 | 12 | 6 / 2.5 | 14 | Bright, uncoated | Options: plastic cassette + master carton; plastic tied coil; unit carton box + master carton |
| ZM002 | 25 | 0.7 | 12 | 6 / 2.5 | 14 | Bright, uncoated | Plastic tied coil + master carton |
| ZM003 | 10 | 0.7 | 17 | 7.8 / 3.5 | 23.5 | Bright, uncoated | Same as ZM001 |
| ZM004 | 25 | 0.7 | 17 | 7.8 / 3.5 | 23.5 | Bright, uncoated | Plastic tied coil, 10 pcs/master |
| ZM005 | 3 | 0.7 | 19 | 8.3 / 3.3 | 18 | Bright, uncoated | Same as above |
| ZM006 | 10 | 0.7 | 19 | 8.3 / 3.3 | 18 | Bright, uncoated | Same as above |
| ZM007 | 25 | 0.7 | 19 | 8.3 / 3.3 | 18 | Bright, uncoated | Same as above |
| ZM008 | 10 | 1.0 | 19 | 8.3 / 3.3 | 18 | Bright, uncoated | Same as above |
| ZM009 | 25 | 1.0 | 19 | 8.3 / 3.3 | 18 | Bright, uncoated | Same as above |
| ZM010 | 10 | 0.7 | 25 | 8.2 / 3.8 | 25 | Bright, uncoated | Same as above |
| ZM011 | 10 | 1.0 | 25 | 8.2 / 3.8 | 25 | Bright, uncoated | Same as above |
| ZM012 | 25 | 0.7 | 25 | 8.2 / 3.8 | 25 | Bright, uncoated | Same as above |
| ZM013 | 25 | 1.0 | 25 | 8.2 / 3.8 | 25 | Bright, uncoated | Same as above |

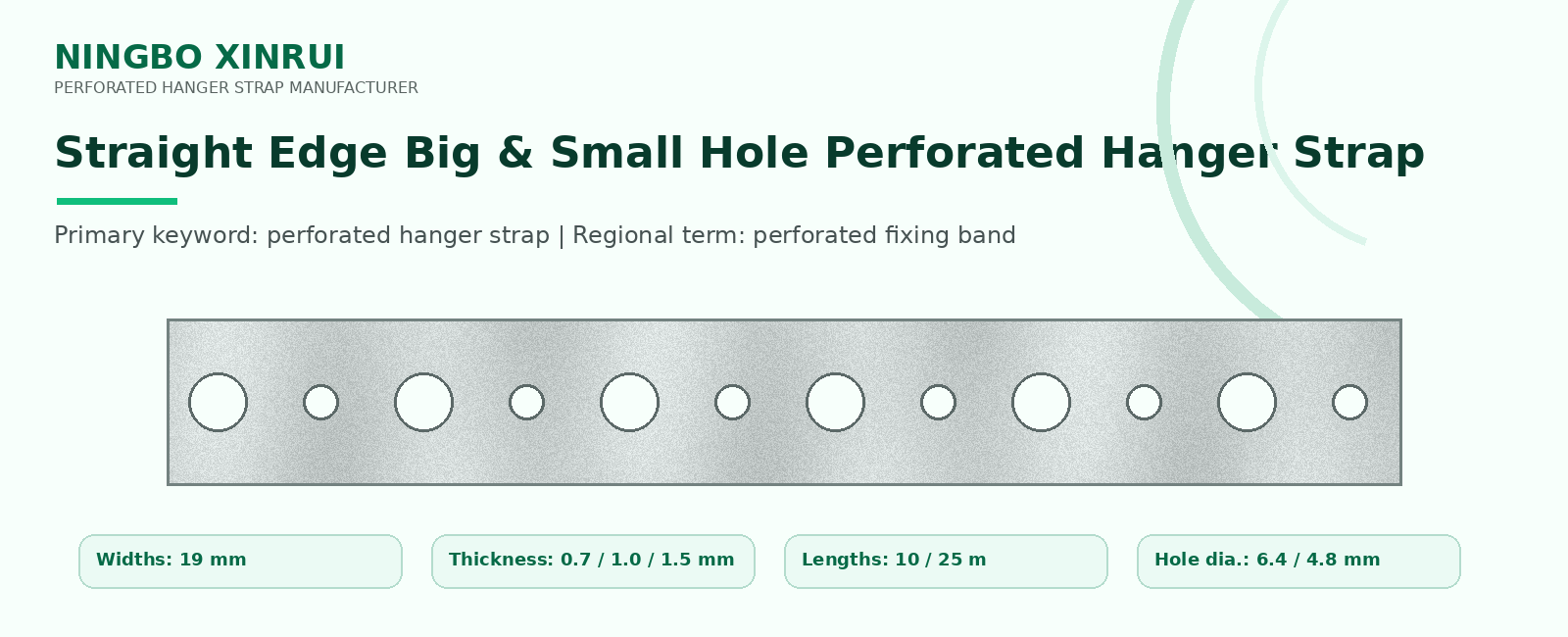

Straight Edge Big & Small Hole Perforated Hanger Strap
Straight edge perforated hanger strap with two sizes of holes arranged one after another. It provides a clean product family for buyers who require alternating hole sizes.
- Width options: 19 mm
- Thickness options: 0.7 / 1.0 / 1.5 mm
- Length options: 10 / 25 m
| Item No. | Length (m) | Thickness (mm) | Width (mm) | Hole Dia. (mm) | Hole Spacing (mm) | Finish / Surface | Packing |
|---|---|---|---|---|---|---|---|
| ZD009 | 10 | 0.7 | 19 | 6.4 / 4.8 | 25 | Galvanized carbon steel | Same as above |
| ZD010 | 25 | 0.7 | 19 | 6.4 / 4.8 | 25 | Bright, uncoated | Same as above |
| ZD011 | 25 | 1.0 | 19 | 6.4 / 4.8 | 25 | Bright, uncoated | Same as above |
| ZD012 | 25 | 1.5 | 19 | 6.4 / 4.8 | 25 | Bright, uncoated | Same as above |
Materials and Finish / Surface Treatment
Common finish and material expressions for this product page should include galvanized carbon steel, bright / uncoated, powder coated finish, PVC coated steel and stainless steel 304 / 316 where required. For product tables, Finish / Surface Treatment is the most practical heading. Use coating when discussing corrosion protection.
Quotation Checklist
- Product style
- Material
- Width
- Thickness
- Length per roll
- Hole diameter
- Hole spacing / pitch
- Finish / surface treatment
- Packing method
- Estimated quantity
- Target market
- Drawing or sample photo
Contact
- WhatsApp / Mobile: +86 138 5717 8478
- Email: raymondren@fastmail.com
- Company: Ningbo Xinrui Ventilation Equipment Co., Ltd.
